Code	Nominal Voltage (V)	Capacity (AH)	Dimension								Weight		Terminal
			Length		Width		Height		Total Height		Kg	Lb	Type	Position
			mm	in	mm	in	mm	in	mm	in	Kg	Lb	Type	Position

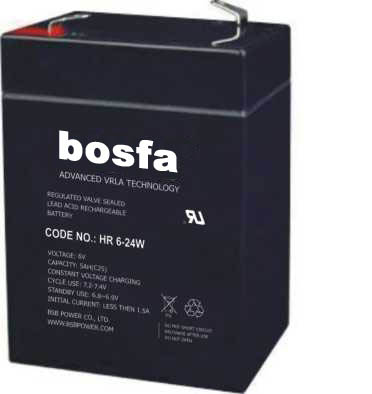

HR6-24W image	6	24W	70	2.76	47	1.85	101	3.98	107	4.21	0.95	2.09	F1	A

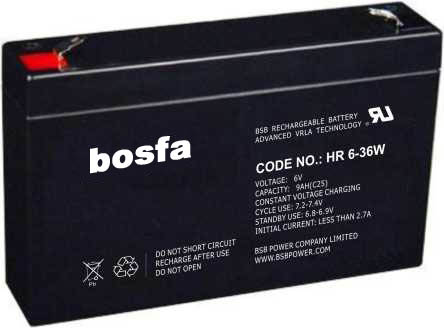

HR6-36W image	6	36W	150	5.91	34	1.34	94	3.7	100	3.94	1.4	3.09	F1	C
HR6-45W image	6	45W	98	3.86	56.5	2.22	115	4.53	115	4.53	2.1	4.63	F2	B

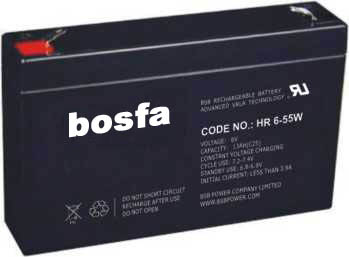

HR6-55W image	6	55W	151	5.94	50	1.97	94	3.7	100	3.94	2.2	4.85	F2	C

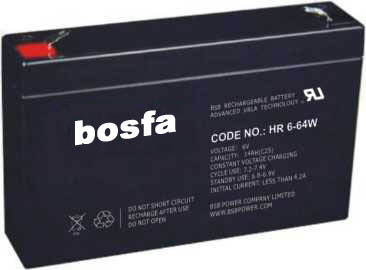

HR6-64W image	6	64W	151	5.94	50	1.97	94	3.7	100	3.94	2.3	5.07	F2	C

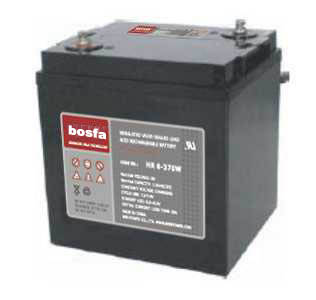

HR6-370W image	6	370W	194	7.64	170	6.69	207	8.15	210	8.27	16	35.28	T19	A
HR12L-21W image	12	21W	140	5.51	48	1.89	101.5	4	103.5	4.07	1.7	3.75	F1,F2	C

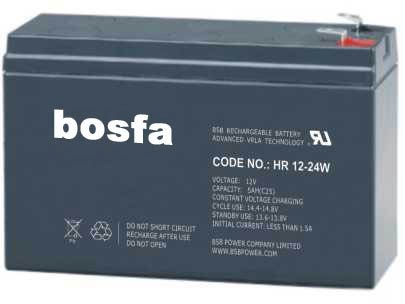

HR12-24W image	12	24W	151	5.94	53	2.09	93	3.66	99	3.9	1.9	4.19	F1	F
HR12L-24W image	12	24W	140	5.51	48	1.89	101.5	4	103.5	4.07	1.7	3.75	F1,F2	C

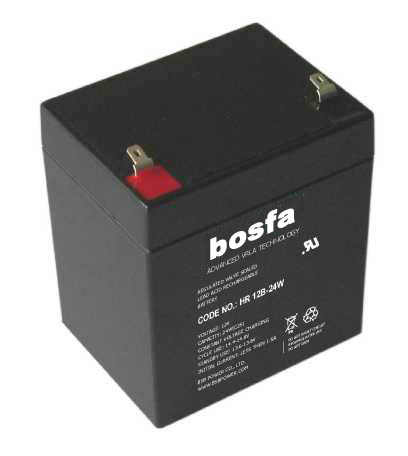

HR12B-24W image	12	24W	90	3.54	70	2.76	101	3.98	107	4.21	1.9	4.19	F1	C
HR12-36W image	12	36W	151	5.94	65	2.56	95	3.74	101	3.98	2.7	5.95	F1	F

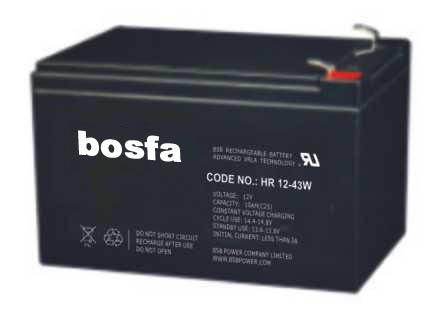

HR12-43W image	12	43W	151	5.94	65	2.56	111	4.37	117	4.61	3.15	6.95	F2	F

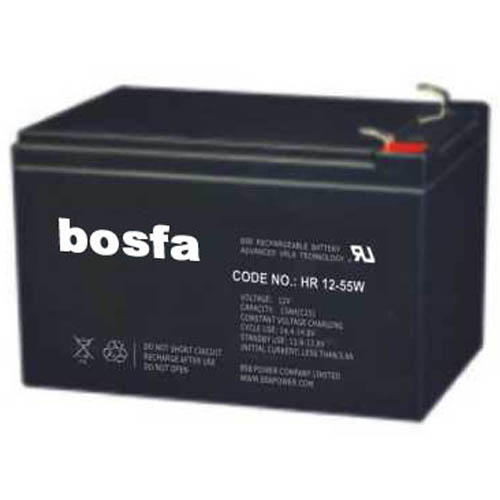

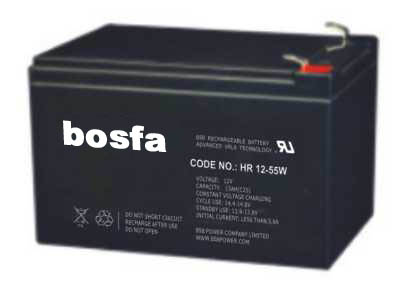

HR12-55W image	12	55W	151	5.94	98	3.86	95	3.74	101	3.98	4.2	9.26	F2	F

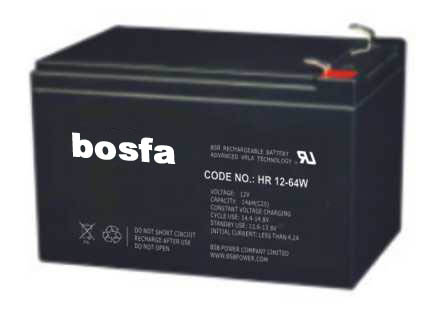

HR12-64W image	12	64W	151	5.94	98	3.86	95	3.74	101	3.98	4.4	9.70	F2	F
HR12-75W image	12	75W	181	7.13	76	2.99	167	6.57	167	6.57	6.3	13.89	T5	D

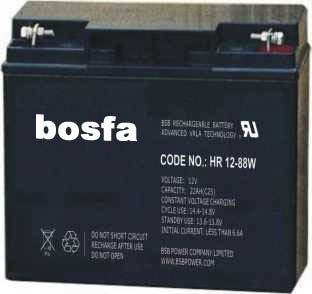

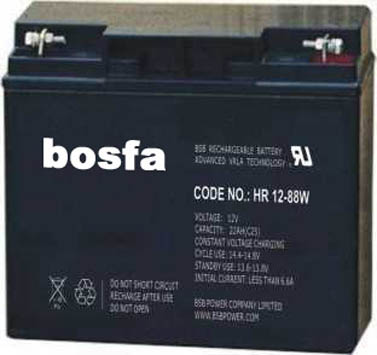

HR12-88W image	12	88W	181	7.13	76	2.99	167	6.57	167	6.57	6.6	14.55	T5	D
HR12-95W image	12	95W	181	7.13	76	2.99	167	6.57	167	6.57	7	15.44	T5	D
HR12-100W image	12	100W	175	6.89	166	6.54	125	4.92	125	4.92	8.9	19.62	T5	D
HR12-140W image	12	140W	195	7.68	130	5.12	159	6.26	183	7.2	10.3	22.71	T7	C
HR12-170W image	12	170W	197	7.76	165	6.5	170	6.69	170	6.69	12.5	27.56	T9	D
